PP-9L PTA torch for surfacing in hard-to-reach places of different parts

PP-9L

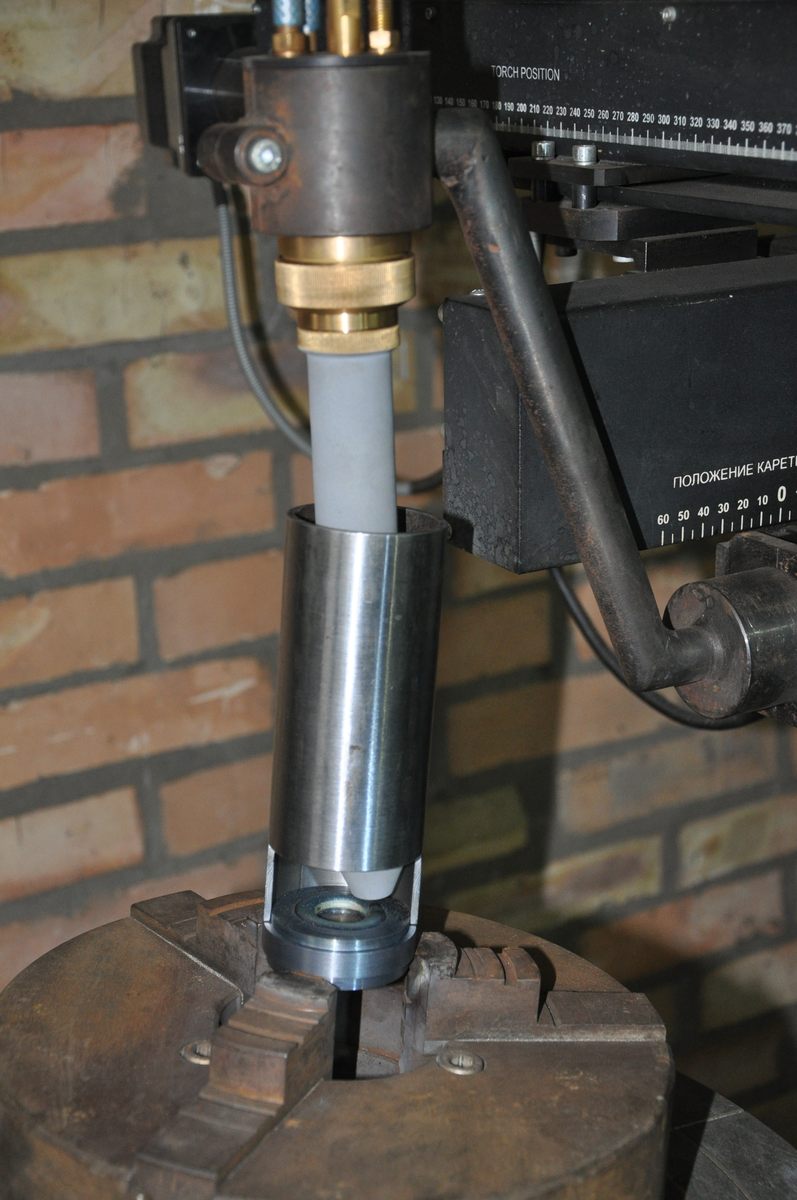

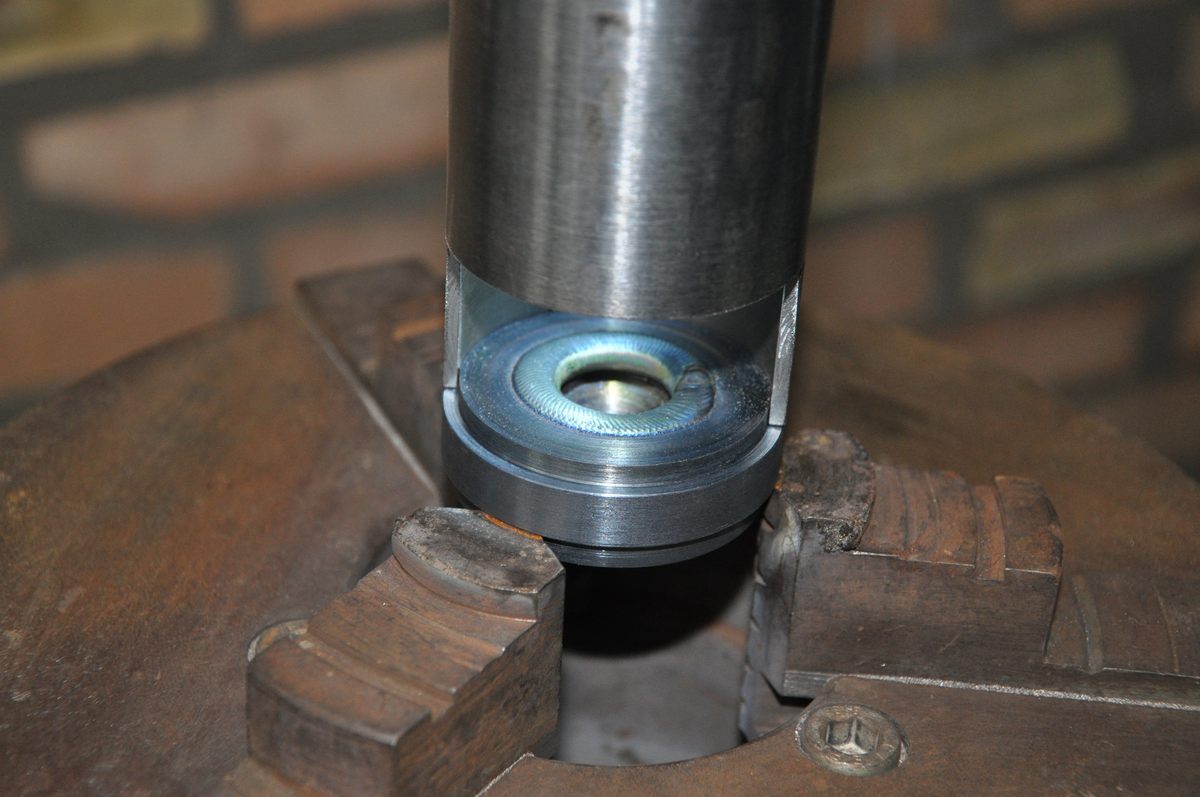

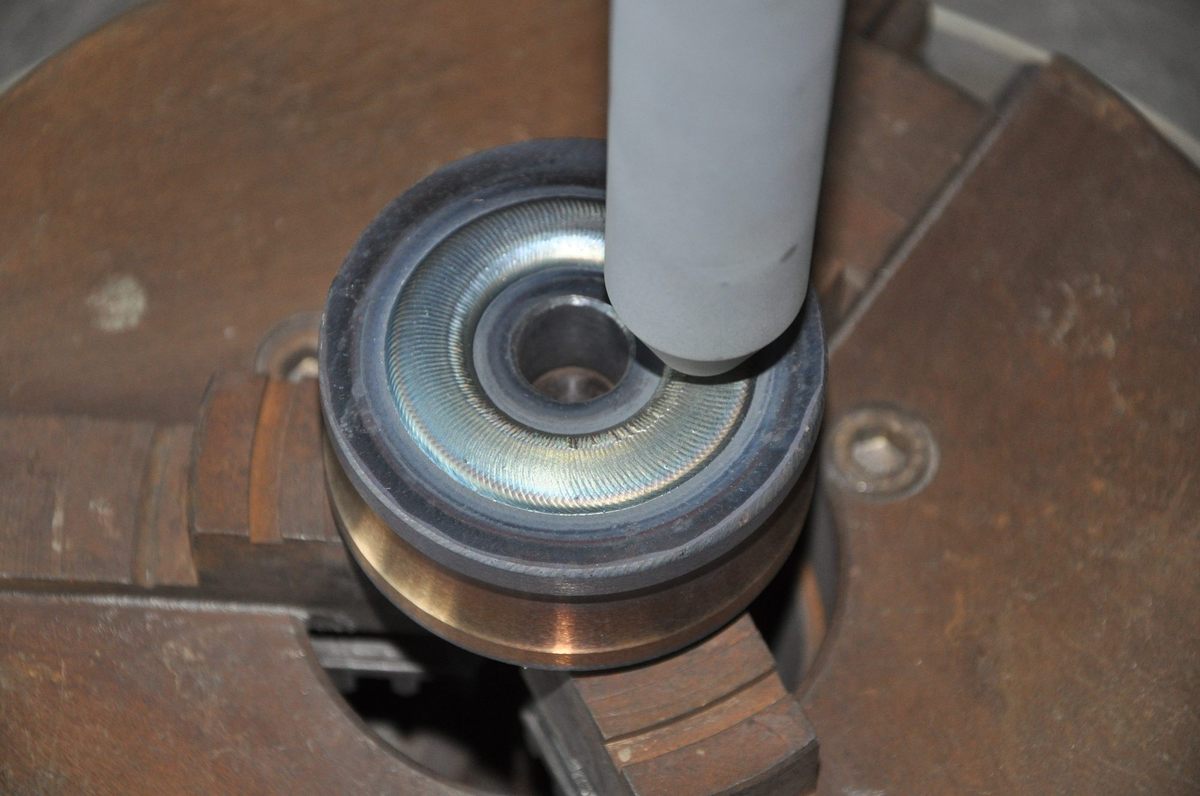

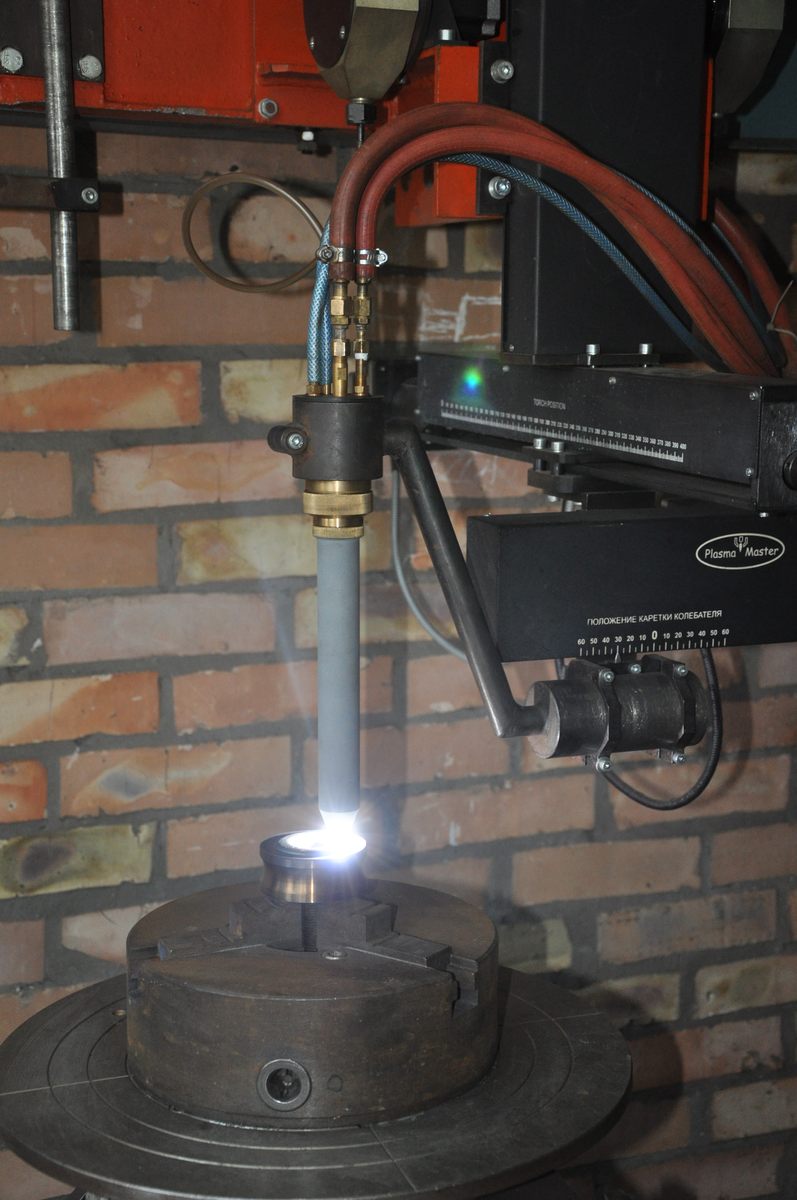

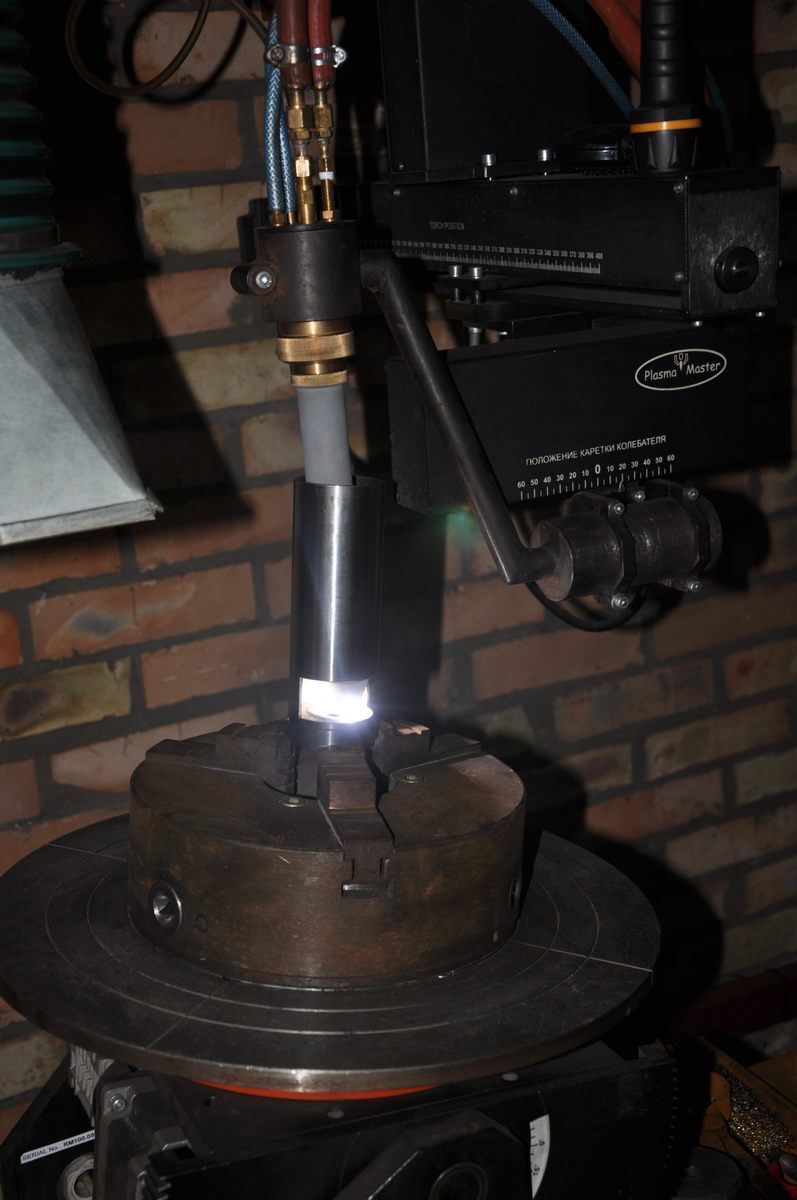

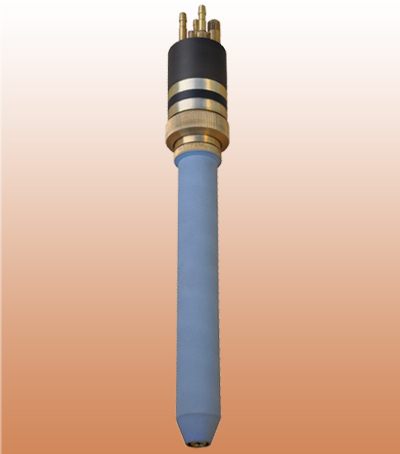

PP-9L PTA torch is designed for plasma transferred arc surfacing (the PTA-process) in hard-to-reach places of different parts (seal faces inside of body of small-sized stop valve and etc.).
PTA torch has vertical version in which all nipples for connection the feeding communications on the upper end are placed.

To avoid an electrical contact between PTA torch and hard-faced part its shielding nozzle is covered by ceramic.

The PTA torch complete set includes two couples of plasma and focusing nozzles of different dimensions. Indeed, there are two torches in one. Necessary combination of nozzles is selected according to required power and concentration of plasma arc (see Table I.).

It is possible to deposit Fe-, Ni- and Co- based alloys on working faces of different parts to protect them against wear, corrosion etc. Pure argon (99,995% Ar) is used as a working gas.

I. Recommended combination of nozzles

Outlet size: plasma/focusing nozzle, mm/mm Main working parameters Powder particle size, mkm
Transferred arc current, A Gas flow rate, L/min
plasma transport shielding
2,5 / 5,0 20 - 80 0,5 3,0 6,0 63 - 150
3,0 / 6,0 60 - 150 0,8 3,0 7,0 63 - 150

II. Technical data of PP-9L PTA torch

Current of pilot arc, A 15 - 30
Current of transferred arc, A 20 - 150
Additive powder deposition rate, kg/h 0,4 - 2,0
Powder particle size, mkm 63 - 150
Powder losses, % < 5
Total gas flow rate (argon), l/min 10 - 11
Cooling water flow rate, l/min > 2
Diameter x height, mm 26(44) 324
Weight, kg 0,9
III. PP-9L PTA torch schematic view scheme
IV. PP-9L PTA torch exploded view exploded view

Example of application

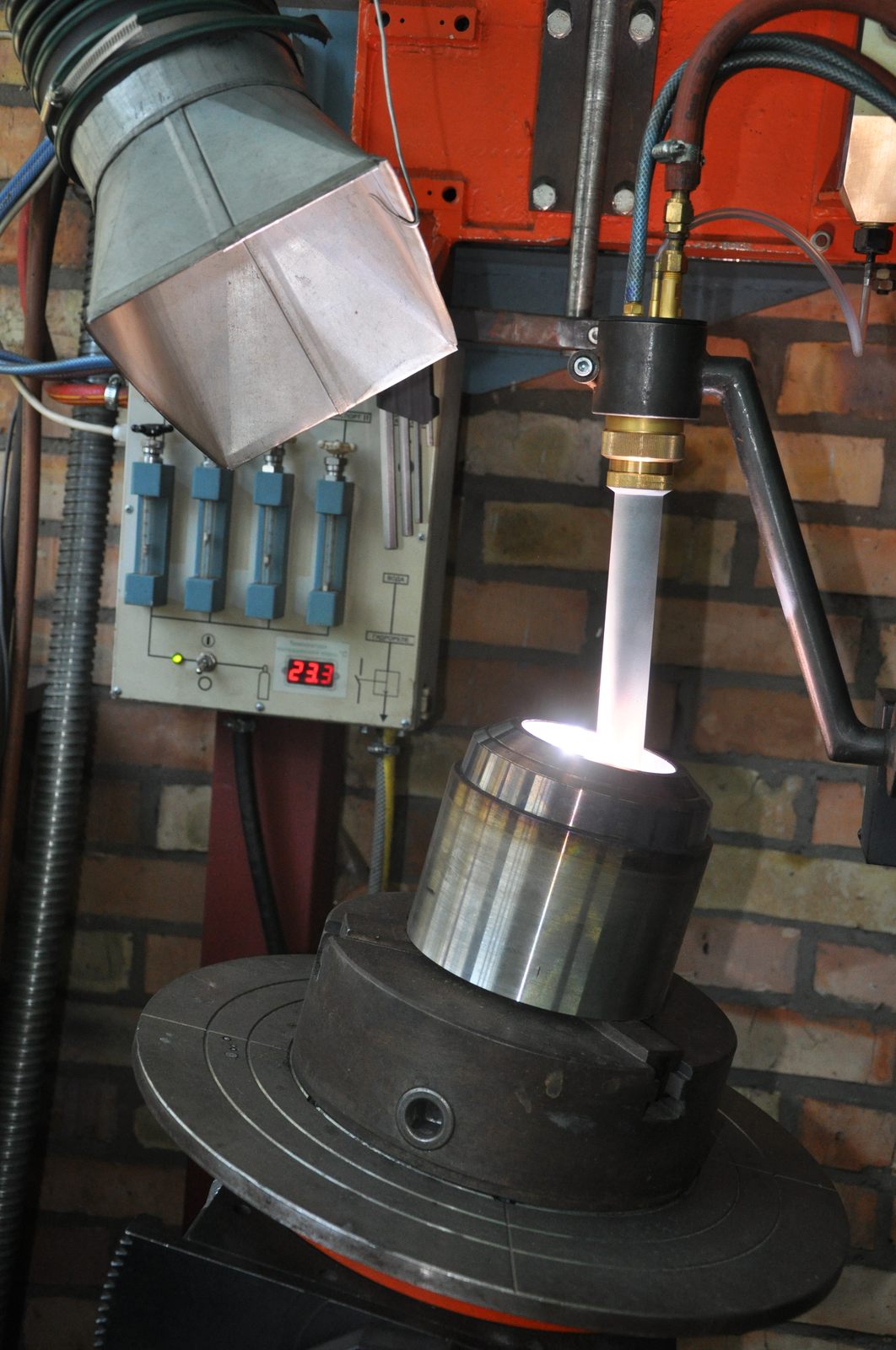

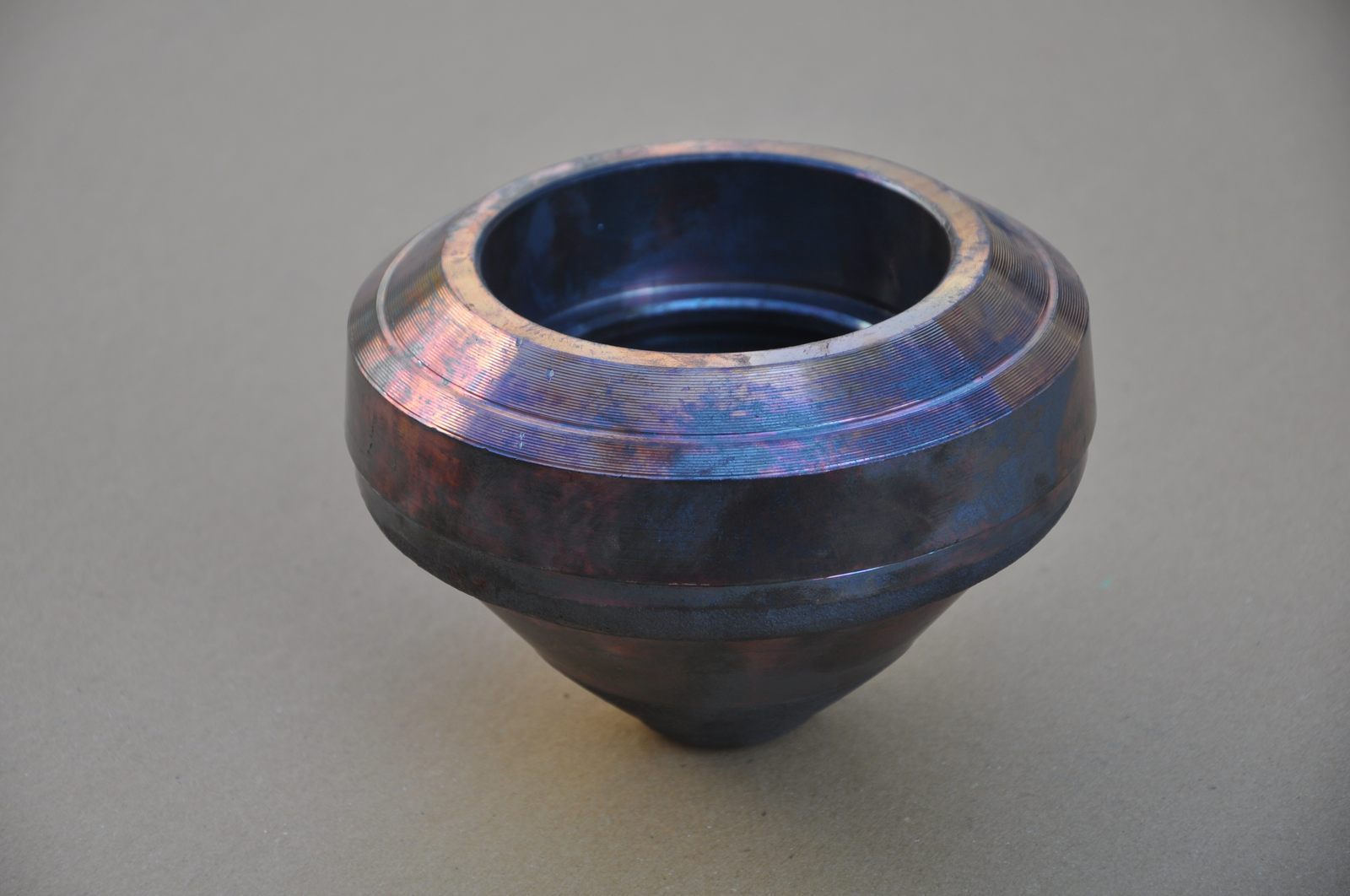

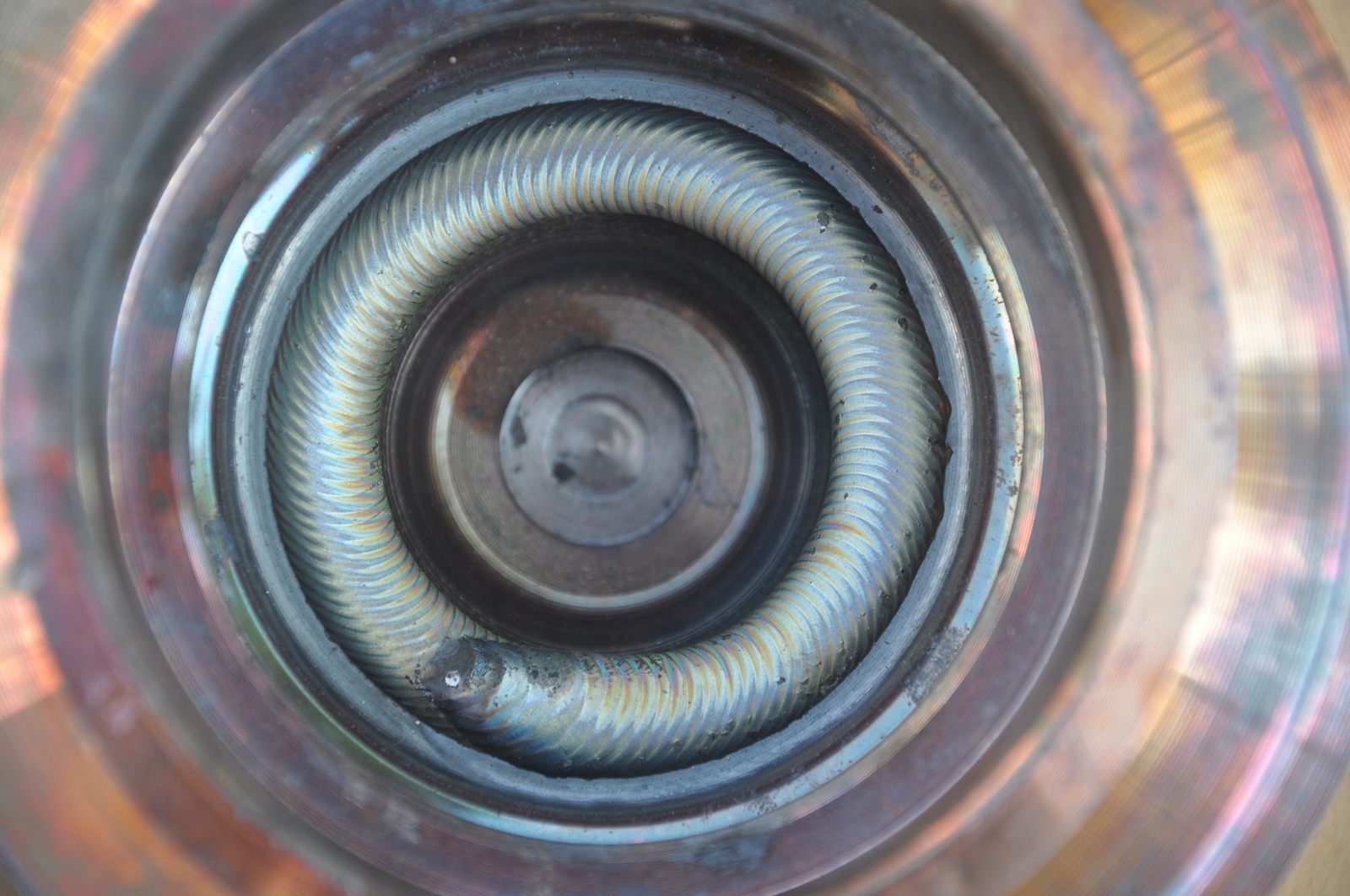

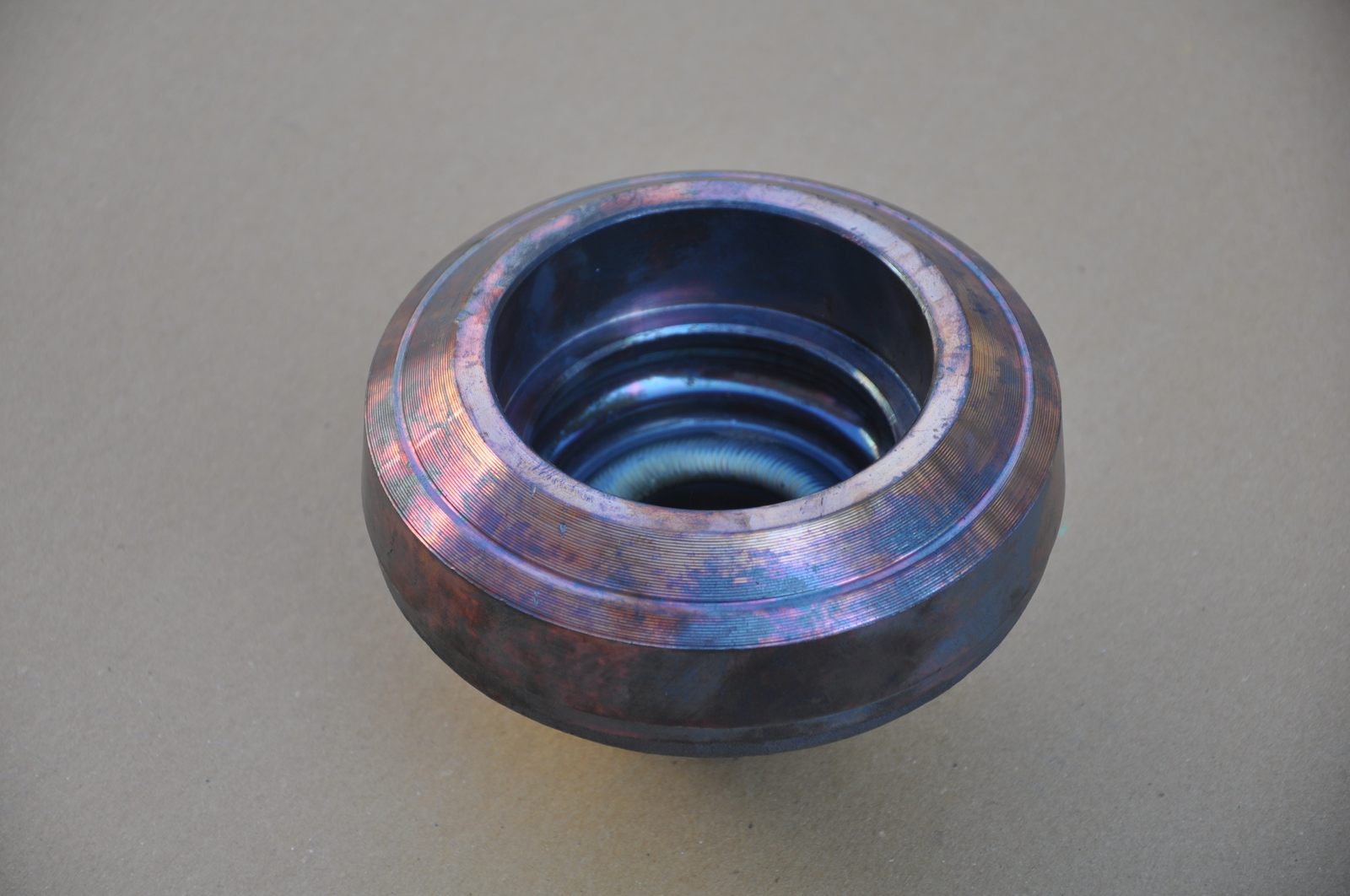

Surfacing of the roller cone drill bit
