PP-6-01 High-productive PTA torch for outside surfacing

PP-6-01

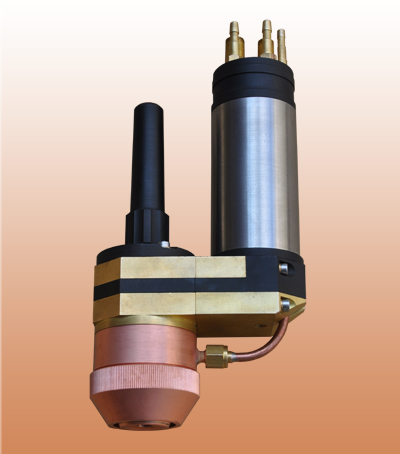

PP-6-01 PTA torch is designed for PTA surfacing of outside of different parts.

The PTA torch is attached to the holder by four screws. This permits to connect or disconnect it for service very quickly.

The PTA torch complete set includes two couples of plasma and focusing nozzles of different dimensions. Indeed, there are two torches in one. Necessary combination of nozzles is selected according to required power and concentration of plasma arc (see Table I.).

It is possible to deposit Fe-, Ni- and Co- based alloys on working faces of different parts to protect them against wear, corrosion etc. Pure argon (99,995% Ar) is used as a working gas.

I. Recommended combination of nozzles

Outlet size: plasma/focusing nozzle, mm/mm Main working parameters Powder particle size, mkm
Transferred arc current, A Gas flow rate, L/min
plasma transport shielding
3 / 6* 30 - 150 1,0 3,0 8,0 63 - 125
4 / 8 80 - 220 2,0 3,0 10,0 63 - 200
5 / 9 150 - 300 2,5 3,5 10,0 80 - 200
6 / 10* 200 - 350 3,0 4,0 12,0 80 - 200
* - available at request of Customer.

II. Technical data of PP-6-01 PTA torch

Current of pilot arc, A 30 - 50
Current of transferred arc, A 30 - 350
Additive powder deposition rate, kg/h 0,5 - 8,0
Powder particle size, mkm 63 - 200
Powder losses, % < 5
Total gas flow rate (argon), l/min 12 - 19
Cooling water flow rate, l/min > 6
Diameter x height, mm 60 238
Weight, kg 2,2
III. PP-6-01 PTA torch schematic view scheme

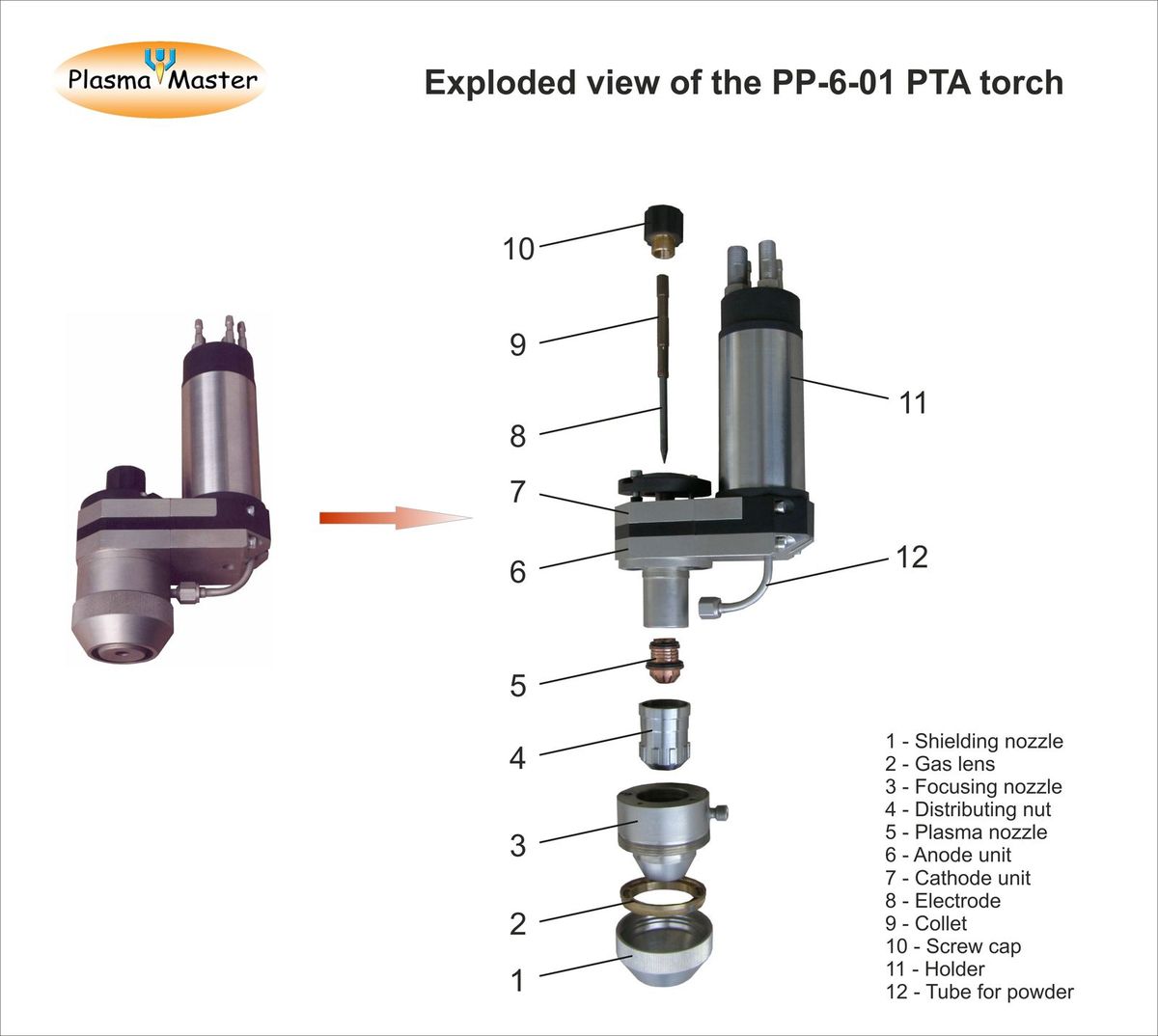

IV. PP-6-01 PTA torch exploded view exploded view
