PM-303 - Universal PTA system for automated surfacing based on CNC

PM-303

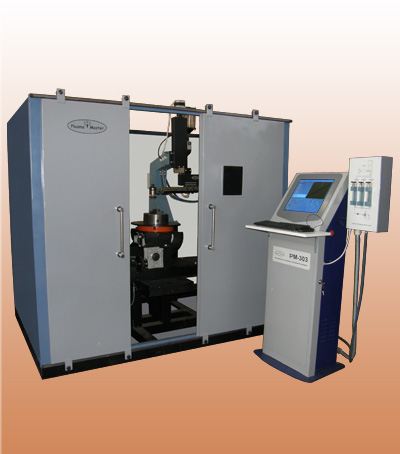

The PM-303 PTA system is designed for automated surfacing of flat, face, cylindrical, conical and other surfaces of different parts to protect them against wear, corrosion etc. The CNC control system provides surfacing of compound parts with high accuracy. 3 mechanical axis and 3 welding parameters are controlled simultaneously. The welding process is visualized at LCD monitor in online.
According to the custom requirements we develop and manufacture a special exchange production accessories and software.

PM-303 PTA system consists of:
  • surfacing unit with PP-6-03 PTA torch (basic option);
  • control box (control system based on CNC);
  • welding power source;
  • stand with protecting fence;
  • water chiller;
  • rotator with inclining axis
    PM-RM-100;
  • two-axis self-propelled table.

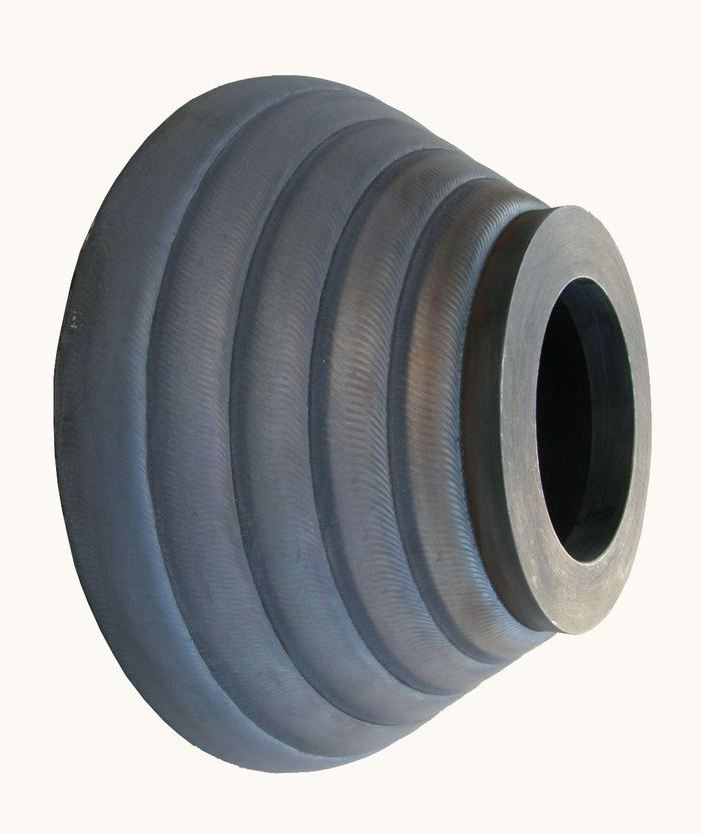

Examples of effective application:

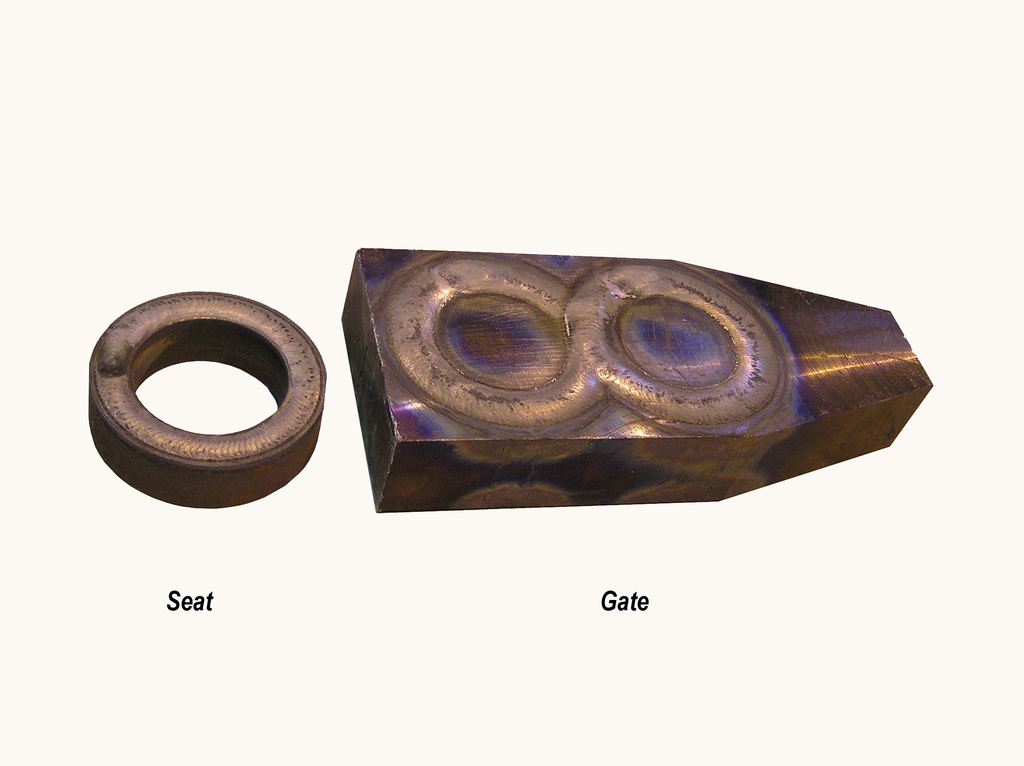

  • energy and oil stop valves;
  • extruding dies with difficult shape;

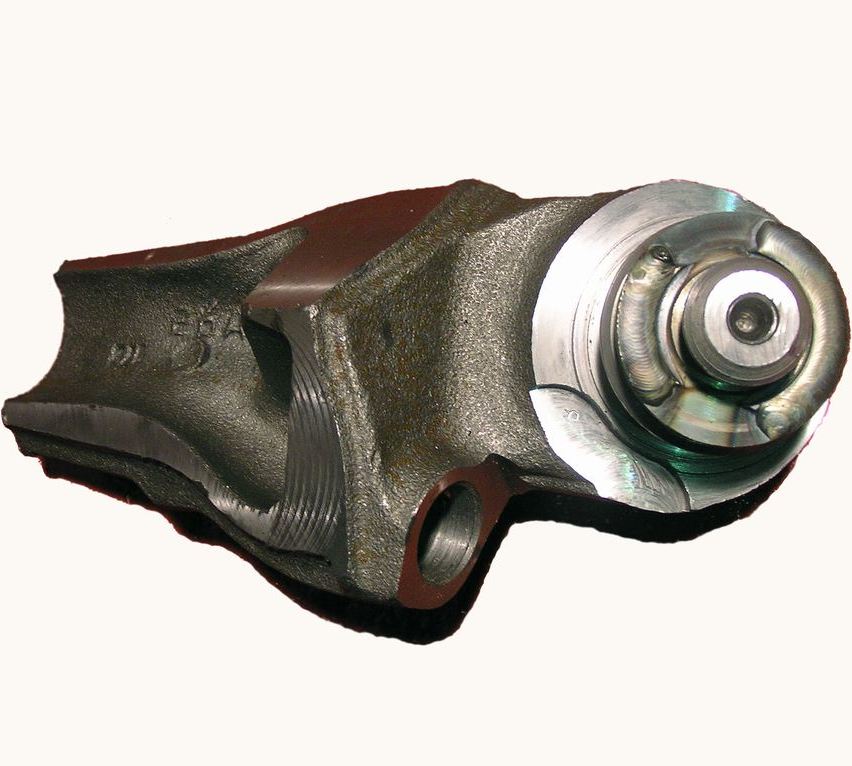

  • drilling bit legs;
  • glass moulds;
  • different bushes;
  • plungers;
  • other parts.

PM-303 PTA system technical data

Mains voltage and frequency 380 V, 50 Hz
Maximum power consumption 10 kVA
Transferred arc current (direct polarity) 30 - 300 А
Plasma, transport and shielding gas Argon, mix
Working gas flow rate < 15 l/min
Cooling water flow rate >4 - 6 l/min
Powder particle size 63 - 200 mkm
Surfacing productivity 0,5 - 8,0 kg/h
Maximum dimensions of parts depending on type of surfacing surfaces:
- faceplate
diameter 600 mm height 250 mm
- cylindrical
diameter 400 mm length 350 mm
- flat
350х350 mm
DIMENSIONS (LxWxH):
Stand with surfacing unit
2000х1500х1800 mm
Control box
500х350х1400 mm
Power source
570х300х400 mm
Water chiller
980х640х680 mm
TOTAL WEIGHT 1000 kg
