Powder feeder PM-PF-10


Powder feeder PM-PF-10 is designed mainly for supply and batching additive powder in surfacing zone with PTA-process.

The metering device realized as a drum with longitudinal inlays and upright moving tube above device. Through this tube powder falls from the hopper on the drum.

Powder consumption is coarse controlled by change the gap between the tube and the drum and precisely by change velocity of drum rotation.

The transparent hopper allow easily to control consumption of prowder during surfacing or tuning.

Rotary drive is stepper motor. It allows to use easily in PLC or CNC systems.

The powder feeder PM-PF-10 consists of:

  • Metering device
  • Transparent hopper
  • Rotary drum drive
  • Control unit

Technical data of PM-PF-10

Mains voltage and frequency

220V, 50-60Hz

Powder flow rate (fine adjustment) 0 -10 kg/h
Gap beetween tube and drum (fine adjustment) 0 - 3 mm
Hopper capacity 3,5 l (15 kg)
Powder particle size 56 - 250 mkm
Form of powder particle spherical
Operating mode continuous
Dimensions (LxWxH):
Powder feeder
175 x 150 x 480 mm
Control unit
240 x 193 x 120 mm
Rotary drive stepper motor
Weight:
Powder feeder
6,7 kg
Control unit
3,3 kg

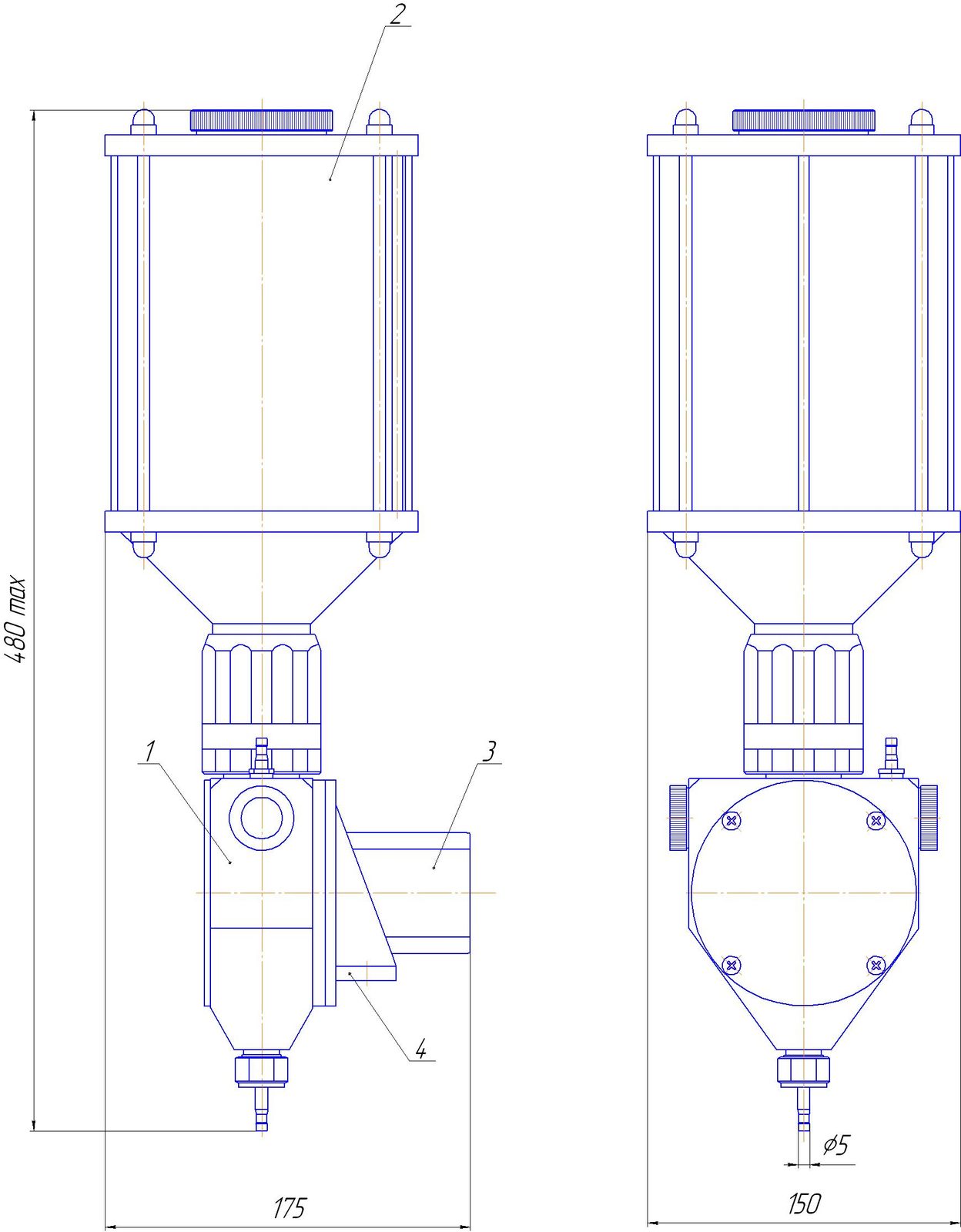

Set:
1 - metering device;
2 - transparent hopper;
3 - rotary drum drive;
4 - load-bearing body.

PM-PF-10 · PM-WMO-120 · PM-RM-100 · PM-WC-1000 · PM-WC-2500 · PM-WC-3000


Exteriors and technical data of equipment could slightly differ from above mentioned due to the permanent development.
