Rotator - Manipulator PM-RM-100

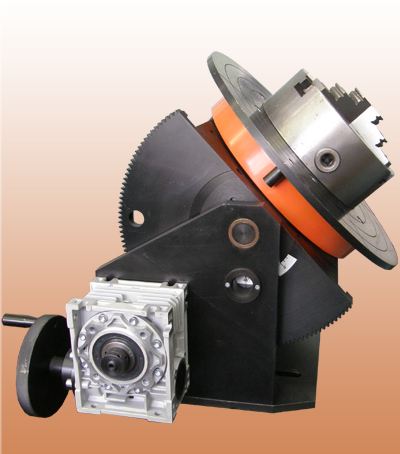

Rotator - manipulator with manual mechanism for inclination

Fig. 1 Rotator - manipulator with manual mechanism for inclination

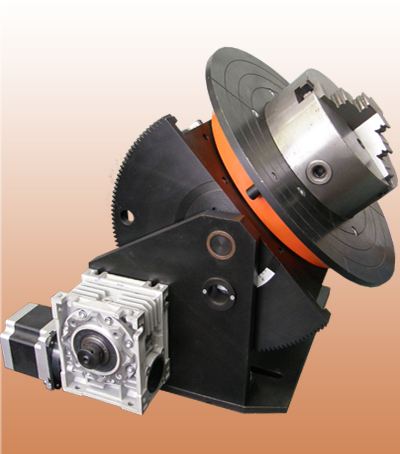

Rotator- manipulator with electric motor for inclination

Fig. 2 Rotator - manipulator with electric motor for inclination

The rotator-manipulator PM-RM-100 is intended for rotation of parts relative to PTA torch during surfacing of face, cylindrical and conical surfaces. For surfacing of cylindrical and conical surfaces in the rotator the mechanism for inclination of face-plate is provided, which can be set in motion or in manual (fig. 1) or by means of the electric motor (fig. 2). In the latter case the face-plate inclination can be operated automatically under the program at surfacing of difficult details that expands its technological possibilities. For monitoring of an angle of inclination in the rotator the scale is provided. There is also a mechanism of fixing of the part in the given inclined position. The part on the face-plate is fixed or by means of special hold-down tools, or by means of a self-aligned turning cartridge.

Technical data

Weight-carrying capacity, kg, no more 100
Diameter of surfacing part, mm, no more 400
Torque, on the axis of part rotation N*m, no more 100
Rotational speed of the part, rpm 0,01 - 3,0
Angle of inclination, degrees 90±1

PM-PF-10 · PM-WMO-120 · PM-RM-100 · PM-WC-1000 · PM-WC-2500 · PM-WC-3000




Exteriors and technical data of equipment could slightly differ from above mentioned due to the permanent development.
