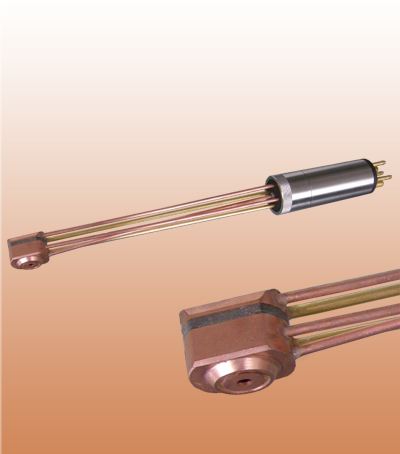

PP-14 PTA mini-torch for inside surfacing

PP-14

The PP-14 PTA torch is designed for inside surfacing of small parts by Fe-, Ni- and Co- based alloys.

Minimal inside diameter to be surfaced is 55 mm, max surface length with the standard holder is 250 mm.

This compact easy re-installed PTA torch performs long service life and suitable maintenance.

In spite of small dimensions PP-14 makes sure high surfacing quality and minimal powder losses.

Pure argon (99,995% Ar) is used as a working gas.

Technical data of PP-14 PTA torch

Current of pilot arc, A 20 - 30
Current of transferred arc, A 30 - 200
Additive powder deposition rate, kg/h 0,2 - 3,0
Powder particle size, mkm 63 - 160
Powder losses, % < 6
Total gas flow rate (argon), l/min 13 - 18
Cooling water flow rate, l/min > 4
Width x height, mm 46 40
Weight without holder(with holder), kg 0,5(1,2)
The PP-14 PTA torch schematic view scheme

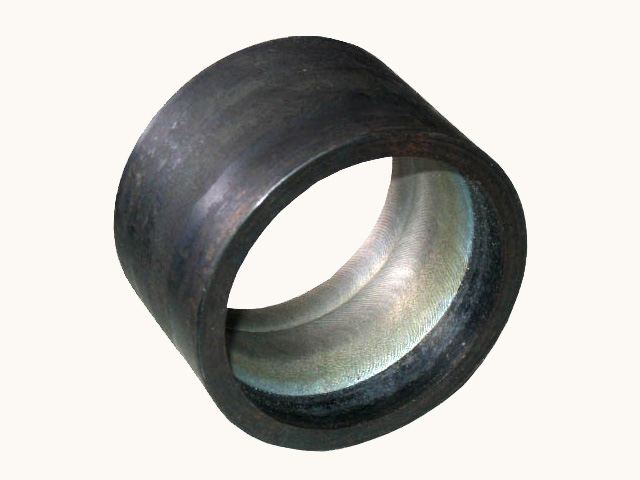

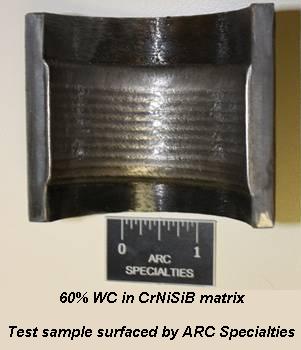

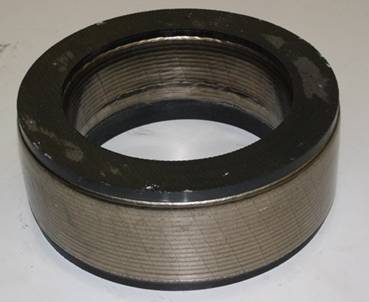

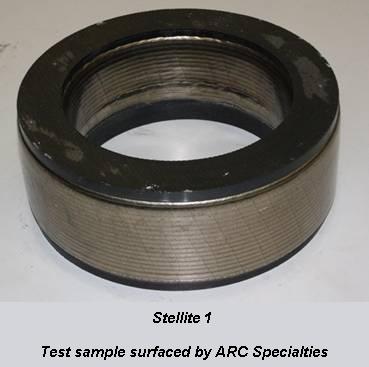

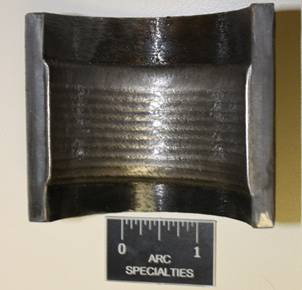

Example of application

- for outside surfacing PP-6-01 PP-6-02 PP-6-03 PP-6-03M PP-6-04 PP-7
PP-7-01 PP-7-02 PP-8 PP-9S

- for inside surfacing PP-12 PP-12-01 PP-14 PP-15

- for special purpose PP-9L PP-21 PP-21-01 PP-25




Exteriors and technical data of equipment could slightly differ from above mentioned due to the permanent development.
