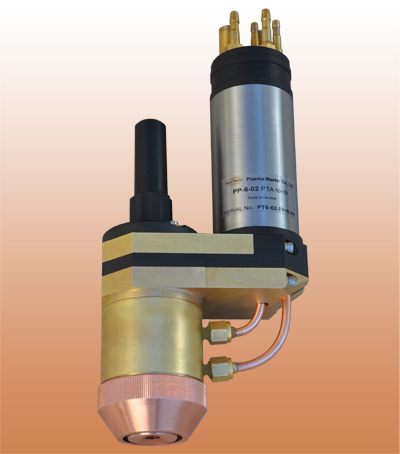

PP-6-02 High-productive PTA torch for deposition of composite alloys with separate feed of matrix and hardening materials

PP-6-02

PP-6-02 PTA torch is designed mainly for surfacing of composite alloys with separate feed of matrix and hardening materials but it is possible to deposit general Fe-, Ni- and Co- based alloys.

It consists of two parts - PTA torch and holder with vertical disposed coupling.

The PTA torch is attached to the holder by four screws. This permits to connect or disconnect it for service very quickly.

The PTA torch complete set includes two couples of plasma and focusing nozzles of different dimensions. Necessary combination of nozzles is selected according to required power and concentration of plasma arc (see Table I.).

Pure argon (99,995% Ar) is used as a working gas.

I. Recommended combination of nozzles

Outlet size: plasma/focusing nozzle, mm/mm Main working parameters Powder particle size, mkm
Transferred arc current, A Gas flow rate, L/min
plasma transport shielding matrix material hardening material
matrix material hardening material
4 / 8 80 - 200 2,0 4,0 5,0 8,0 80 - 200 80 - 250
5 / 9 120 - 350 2,5 4,5 5,0 10,0 80 - 200 80 - 250

II. Technical data of PP-6-02 PTA torch

Current of pilot arc, A 30 - 50
Current of transferred arc, A 50 - 350
Additive powder deposition rate, kg/h 1,0 - 8,0
Powder particle size, mkm
matrix material
80 - 200
hardening material
80 - 250
Powder losses, % < 5
Total gas flow rate (argon), l/min 19 - 22
Cooling water flow rate, l/min > 6
Diameter x height, mm 60 260
Weight, kg 2,7
III. PP-6-02 PTA torch schematic view scheme

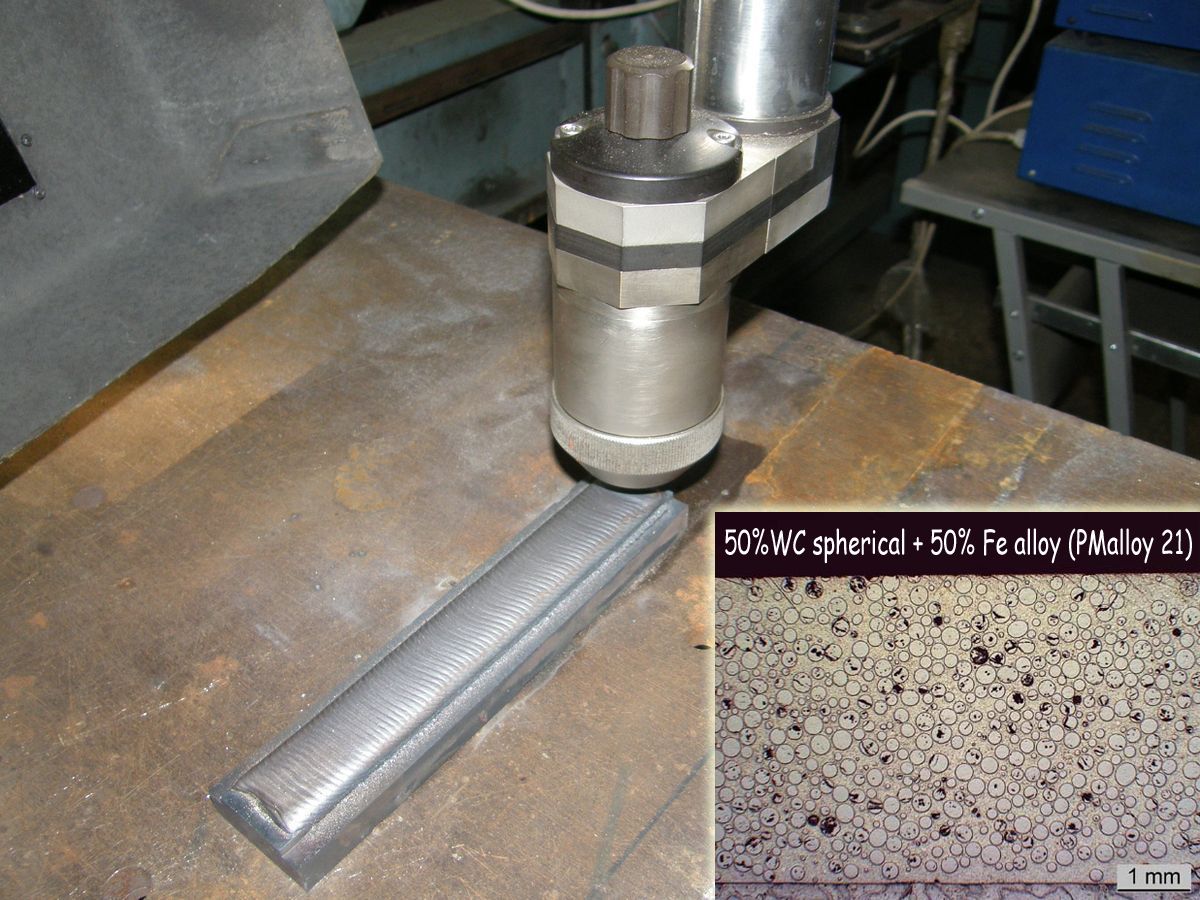

Example of application

- for outside surfacing PP-6-01 PP-6-02 PP-6-03 PP-6-03M PP-6-04 PP-7
PP-7-01 PP-7-02 PP-8 PP-9S

- for inside surfacing PP-12 PP-12-01 PP-14 PP-15

- for special purpose PP-9L PP-21 PP-21-01 PP-25




Exteriors and technical data of equipment could slightly differ from above mentioned due to the permanent development.
