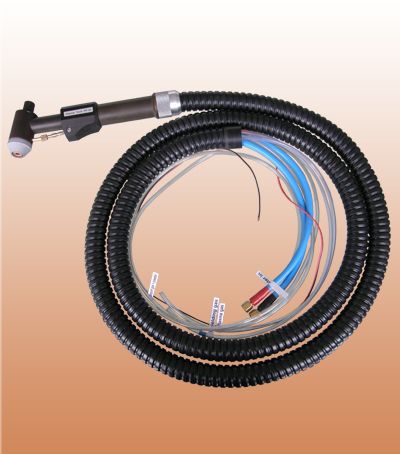

PP-25 PTA torch for manual surfacing

PP-25

PP-25 PTA torch is very convenient for surfacing complicated curve parts and for repair works.

In particular, PP-25 is very suitable to correct defects of weld layer forming during surfacing of extruder and injection-machine screws.

Pure argon (99,995% Ar) is used as a working gas.

I. Technical data of PP-25 PTA torch

Current of pilot arc, A 20 - 30
Current of transferred arc, A 20 - 150
Additive powder deposition rate, kg/h 0,5 - 2,0
Powder particle size, mkm 63 - 150
Powder losses, % < 5
Total gas flow rate (argon), l/min 12 - 14
Cooling water flow rate, l/min > 2
Diameter x height, mm 38 98
Weight without communications(with communications), kg 0,6(2,2)
II. PP-25 PTA torch schematic view scheme

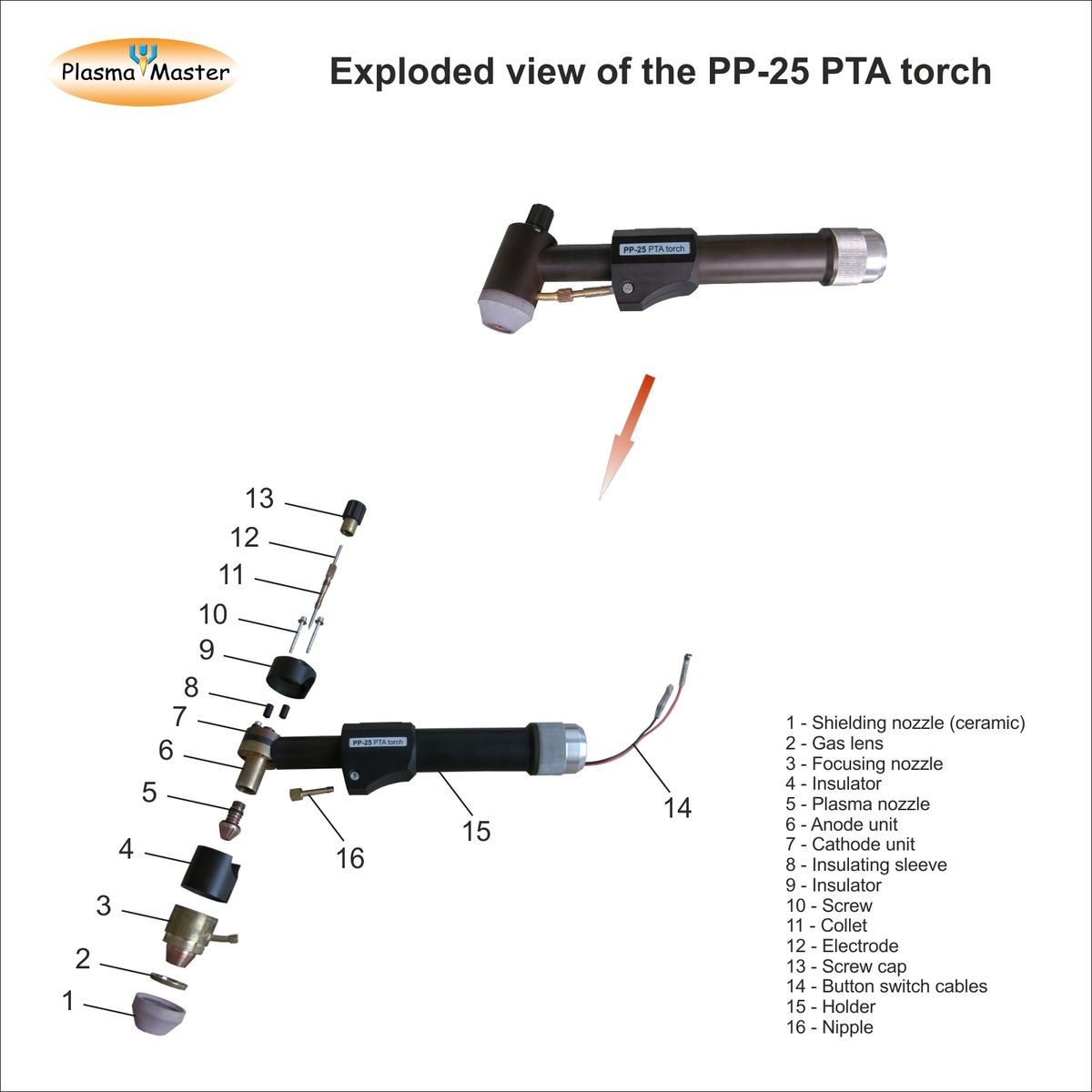

III. PP-25 PTA torch exploded view exploded view
Example of application PP-25 application PP-25 application

- for outside surfacing PP-6-01 PP-6-02 PP-6-03 PP-6-03M PP-6-04 PP-7
PP-7-01 PP-7-02 PP-8 PP-9S

- for inside surfacing PP-12 PP-12-01 PP-14 PP-15

- for special purpose PP-9L PP-21 PP-21-01 PP-25




Exteriors and technical data of equipment could slightly differ from above mentioned due to the permanent development.
